HackTheBox Sherlock - LogJammer (DFIR)

Scenario

LogJammer is an Easy HackTheBox Sherlock (defensive / DFIR challenge). A single Windows workstation, DESKTOP-887GK2L, was used by an account named cyberjunkie who carried out a string of suspicious actions before trying to cover his tracks. You are handed the host’s exported Windows event logs and must reconstruct the whole sequence: when the user first logged on, what firewall rule he planted, which audit policy he tampered with, the scheduled task he created, the hacktool antivirus caught, the PowerShell he ran, and — finally — which log he wiped.

“A user named cyberjunkie performed several malicious activities on his workstation DESKTOP-887GK2L. From the provided Windows event logs, reconstruct his actions: the initial logon, firewall and audit-policy tampering, a scheduled task, an antivirus detection, PowerShell execution, and an attempt to clear the logs.”

Field	Value
Platform	HackTheBox — Sherlock
Category	DFIR / Windows event-log analysis
Difficulty	Easy
Artifacts	Security.evtx, System.evtx, Powershell-Operational.evtx, Windows Defender-Operational.evtx, Windows Firewall-Firewall.evtx
Skills	Multi-channel EVTX triage, Event ID mapping, timezone normalisation, ATT&CK mapping

Artifacts

This case is a multi-channel exercise — every answer lives in a different Windows event-log channel, and the skill is knowing which Event ID in which .evtx records each action:

• Security.evtx — interactive logon (4624), audit-policy change (4719), scheduled-task creation (4698).
• Windows Firewall-Firewall.evtx (Microsoft-Windows-Windows Firewall With Advanced Security/Firewall) — firewall rule add (2004), and the log-clear marker (104).
• Windows Defender-Operational.evtx (Microsoft-Windows-Windows Defender/Operational) — malware detection (1116) and remediation action (1117).
• Powershell-Operational.evtx (Microsoft-Windows-PowerShell/Operational) — ScriptBlock logging (4104).
• System.evtx — supporting host/system context.

The analyst also exported the channels to CSV timelines (one per .evtx) so they can be sorted, filtered, and searched side by side.

Toolkit

• EvtxECmd (Eric Zimmerman) → CSV → Timeline Explorer for each .evtx channel
• A custom EVTX dashboard / CSV timeline (my own DFIR triage workflow) for fast cross-channel filtering and field inspection — shown in the screenshots below
• Windows Event Viewer (native) as a fallback with XPath filters per Event ID
• CyberChef Translate DateTime Format to normalise local timestamps to UTC

# Convert each channel to CSV for Timeline Explorer
EvtxECmd.exe -f "Security.evtx" --csv . --csvf security.csv
EvtxECmd.exe -f "Windows Firewall-Firewall.evtx" --csv . --csvf firewall.csv
EvtxECmd.exe -f "Windows Defender-Operational.evtx" --csv . --csvf defender.csv
EvtxECmd.exe -f "Powershell-Operational.evtx" --csv . --csvf powershell.csv

# Or pull a single Event ID straight from the EVTX (XPath via Get-WinEvent)
Get-WinEvent -Path "Security.evtx" -FilterXPath "*[System[EventID=4719]]"
Get-WinEvent -Path "Security.evtx" -FilterXPath "*[System[EventID=4698]]"

Analysis — Every Windows action leaves its fingerprint in a specific channel and Event ID, so the whole challenge is a routing problem: a firewall rule is not in Security.evtx, antivirus actions are not in System.evtx, and PowerShell content only appears once ScriptBlock logging is on. One trap to watch: the host timeline is in local time (here JST, +09:00) but HTB wants UTC — normalise every timestamp before answering (27/03/2023 23:37:09 JST → 27/03/2023 14:37:09 UTC).

Background: the Event IDs that tell this story

Channel	Event ID	What it records	Why it matters here
Security	4624	Successful logon (Type 2 = interactive)	first time cyberjunkie signed in
Windows Firewall	2004	A firewall rule was added to the exception list	the malicious Metasploit C2 Bypass rule
Security	4719	System audit policy was changed	the subcategory the attacker re-armed/disabled
Security	4698	A scheduled task was created	the HTB-AUTOMATION persistence task
Defender	1116 / 1117	Malware detected / action taken	SharpHound flagged, then quarantined
PowerShell	4104	ScriptBlock logging — the actual command text	Get-FileHash run by the user
Windows Firewall	104	The event log was cleared	anti-forensics / track covering

A quick reference for the firewall rule numbers and fields seen below:

Firewall field	Value seen	Meaning
Event ID 2004	rule added	(2005 = changed, 2006 = deleted, 2003 = profile disabled)
Direction	2	Outbound (1 = Inbound)
Action	3	Allow if secure / IPsec-authenticated (1 = Allow, 2 = Block)
Protocol	6	TCP
RemotePort	4444	classic Metasploit/Meterpreter listener port

Investigation

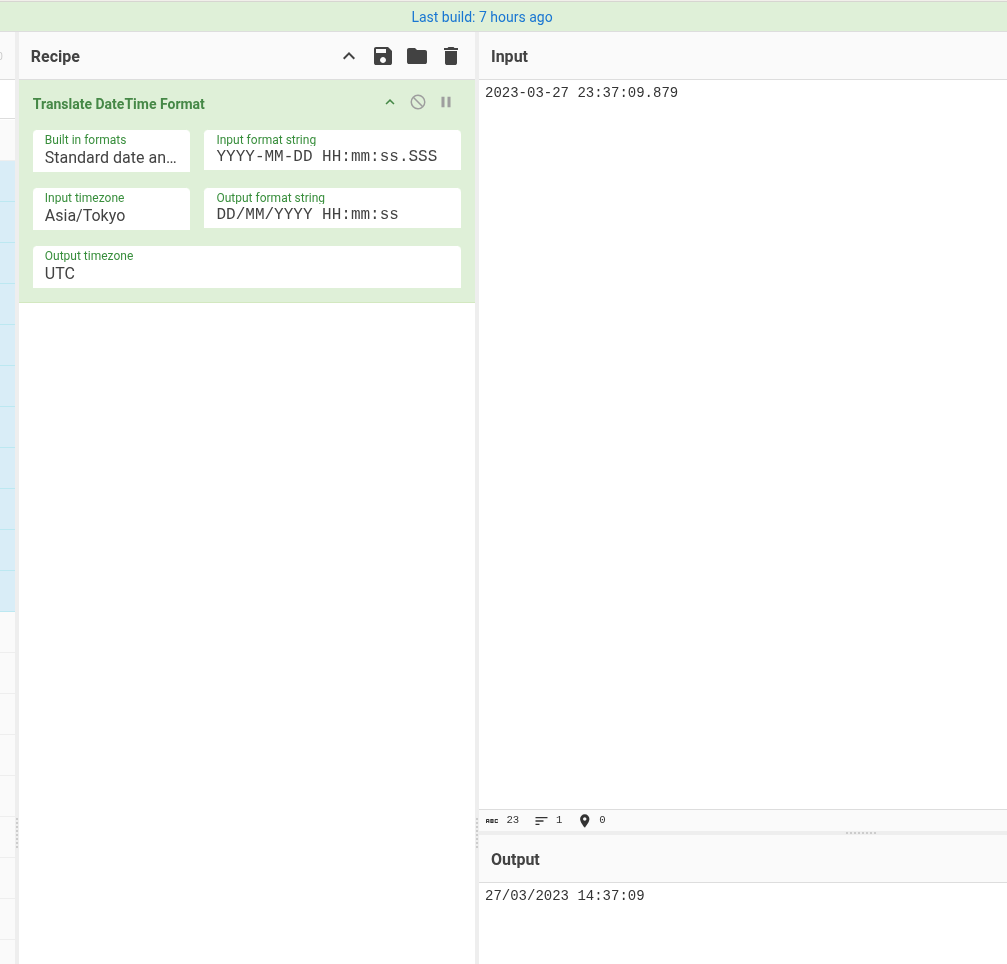

Q1. When did user cyberjunkie successfully log into his computer? (UTC)

Convert Security.evtx to CSV and filter on Event ID 4624 (successful logon). The first interactive (Type 2) logon for cyberjunkie is the answer — but the timeline is recorded in JST (+09:00), so the raw 2023-03-27 23:37:09.879 must be normalised to UTC with CyberChef’s Translate DateTime Format.

Answer

27/03/2023 14:37:09

Analysis — Logon Type 2 means a local interactive sign-on at the keyboard, which is exactly what you expect from the workstation’s owner before he starts operating. The recurring DFIR gotcha is timezones: the host wrote JST, so subtracting nine hours is what turns a “right value, wrong format” near-miss into the accepted UTC answer. (MITRE ATT&CK T1078 — Valid Accounts.)

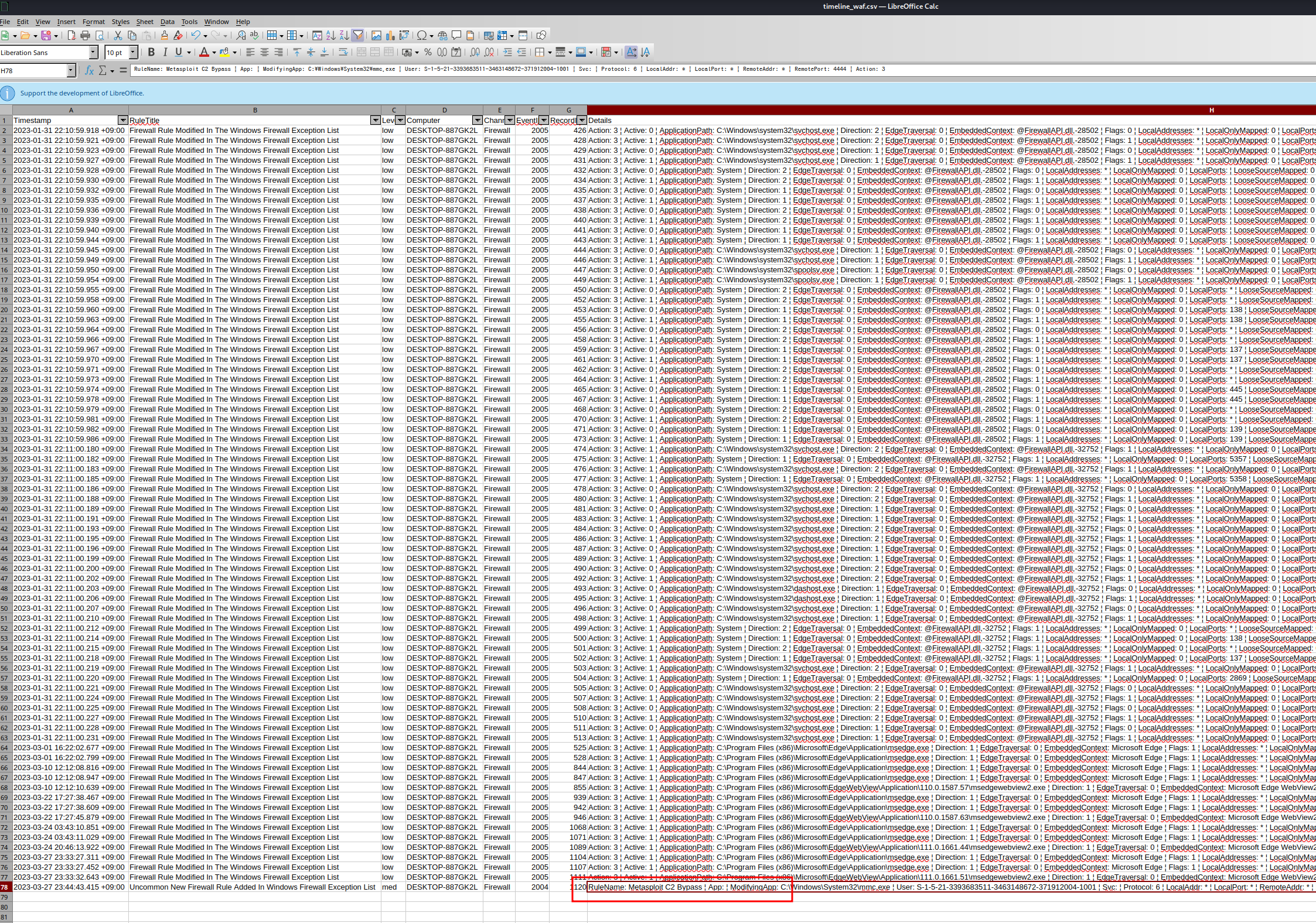

Q2. The user tampered with firewall settings on the system. Analyze the firewall event logs to find out the Name of the firewall rule added?

Switch channels: firewall changes are in Windows Firewall-Firewall.evtx, not in Security. Convert it to CSV and look for Event ID 2004 (“a rule was added to the Windows Firewall exception list”). One rule stands out by name.

Answer

Metasploit C2 Bypass

Analysis — The rule name itself is the IOC — an attacker who labels a rule “Metasploit C2 Bypass” is announcing intent. The supporting fields make it unambiguous: RemotePort 4444 is the canonical Metasploit handler port and Protocol 6 is TCP, so this rule is carving an egress hole for command-and-control traffic. It was added via mmc.exe (the Windows Firewall MMC snap-in). (MITRE ATT&CK T1562.004 — Impair Defenses: Disable or Modify System Firewall.)

Q3. What's the direction of the firewall rule?

Read the Direction field of that same 2004 event. Windows firewall encodes direction numerically.

Answer

Outbound

Analysis — Direction: 2 decodes to Outbound (1 would be Inbound). That is the tell-tale of a C2 channel: rather than opening an inbound port and waiting, the implant reaches out from the victim to the attacker’s listener, which sails past most perimeter inbound filtering. Combined with RemotePort 4444, this is an egress rule built to let Meterpreter call home. (MITRE ATT&CK T1071 — Application Layer Protocol.)

Q4. The user changed audit policy of the computer. What's the Subcategory of this changed policy?

Back to Security.evtx. Audit-policy changes are Event ID 4719. Pull that single event and read the changed subcategory (the SubcategoryGuid 0CCE9227-... resolves to a named subcategory).

Answer

Other Object Access Events

Analysis — EID 4719 is itself a high-value alert — legitimately changing the system audit policy is rare and is exactly what an attacker does to blind specific telemetry. Here SubcategoryGuid 0CCE9227-69AE-11D9-BED3-505054503030 maps to Other Object Access Events. The fact that it was changed by S-1-5-18 (SYSTEM) under DESKTOP-887GK2L$ shows the change went through an elevated context. (MITRE ATT&CK T1562.002 — Impair Defenses: Disable Windows Event Logging.)

Q5. The user "cyberjunkie" created a scheduled task. What's the name of this task?

Scheduled-task creation is audited in Security.evtx as Event ID 4698 (a different ID from the Task Scheduler operational log — search carefully). The event embeds the full task XML, starting with the TaskName.

Answer

HTB-AUTOMATION

Analysis — EID 4698 captures the entire task definition as XML inside the Security log, so it is a goldmine: author, trigger, principal, and the command to run are all preserved even if the task is later deleted. The task \HTB-AUTOMATION was created by DESKTOP-887GK2L\CyberJunkie, runs daily, and — per its <Actions> block — launches a PowerShell script. Scheduled tasks are a classic persistence and execution mechanism. (MITRE ATT&CK T1053.005 — Scheduled Task/Job: Scheduled Task.)

Q6. What's the full path of the file which was scheduled for the task?

Read the <Command> element inside the task XML carried by the same 4698 event.

Answer

C:\Users\CyberJunkie\Desktop\Automation-HTB.ps1

Analysis — The task runs a PowerShell script staged on the user’s own Desktop — a low-effort but effective way to get attacker code executed on a schedule under the user’s identity. Because the path lives in the audited task XML, defenders recover it even after the .ps1 is removed, giving a concrete file to hunt for and hash. (MITRE ATT&CK T1059.001 — Command and Scripting Interpreter: PowerShell.)

Q7. What are the arguments of the command?

The same task XML pairs the <Command> with an <Arguments> element. Read it directly.

Answer

-A cyberjunkie@hackthebox.eu

Analysis — The -A cyberjunkie@hackthebox.eu argument is recorded verbatim in the task definition, so we know not just what ran but exactly how it was parameterised. Capturing full command lines and arguments is what lets a hunt distinguish a benign scheduled script from a weaponised one — the argument here doubles as an actor identifier. (MITRE ATT&CK T1053.005 — Scheduled Task/Job.)

Q8. The antivirus running on the system identified a threat and performed actions on it. Which tool was identified as malware by antivirus?

Move to Windows Defender-Operational.evtx. Event ID 1116 is a Defender detection; its Threat field names the malware family/tool.

Answer

SharpHound

Analysis — Defender flagged HackTool:PowerShell/SharpHound.B (Severity High), pulled from a GitHub release archive. SharpHound is the BloodHound collector — its presence signals the attacker intended Active Directory reconnaissance (collecting users, groups, sessions, and ACLs to map attack paths). Even on a standalone host, an AV detection of an AD recon tool is a strong indicator of attacker intent. (MITRE ATT&CK T1087 — Account Discovery, T1482 — Domain Trust Discovery.)

Q9. What's the full path of the malware which raised the alert?

The same 1116 detection event records the on-disk Path of the threat.

Answer

C:\Users\CyberJunkie\Downloads\SharpHound-v1.1.0.zip

Analysis — Defender names the container that triggered the alert — SharpHound-v1.1.0.zip in the Downloads folder, with the detail showing it was pulled straight from objects.githubusercontent.com. The download-folder origin and the Source Name: Downloads and attachments field confirm a web/download delivery rather than lateral spread. (MITRE ATT&CK T1105 — Ingress Tool Transfer.)

Q10. What action was taken by the antivirus?

The remediation outcome is in Event ID 1117 (action taken) on the Defender channel; read the action name.

Answer

quarantine

Analysis — Defender quarantined the archive rather than merely logging it, so the SharpHound payload was neutralised before it could run. For a defender this is the good-news event — but it should still trigger a hunt, because a quarantined tool tells you the intent (AD enumeration) even if that particular copy never executed. (MITRE ATT&CK T1562.001 — Impair Defenses is what the attacker would attempt next to get past AV.)

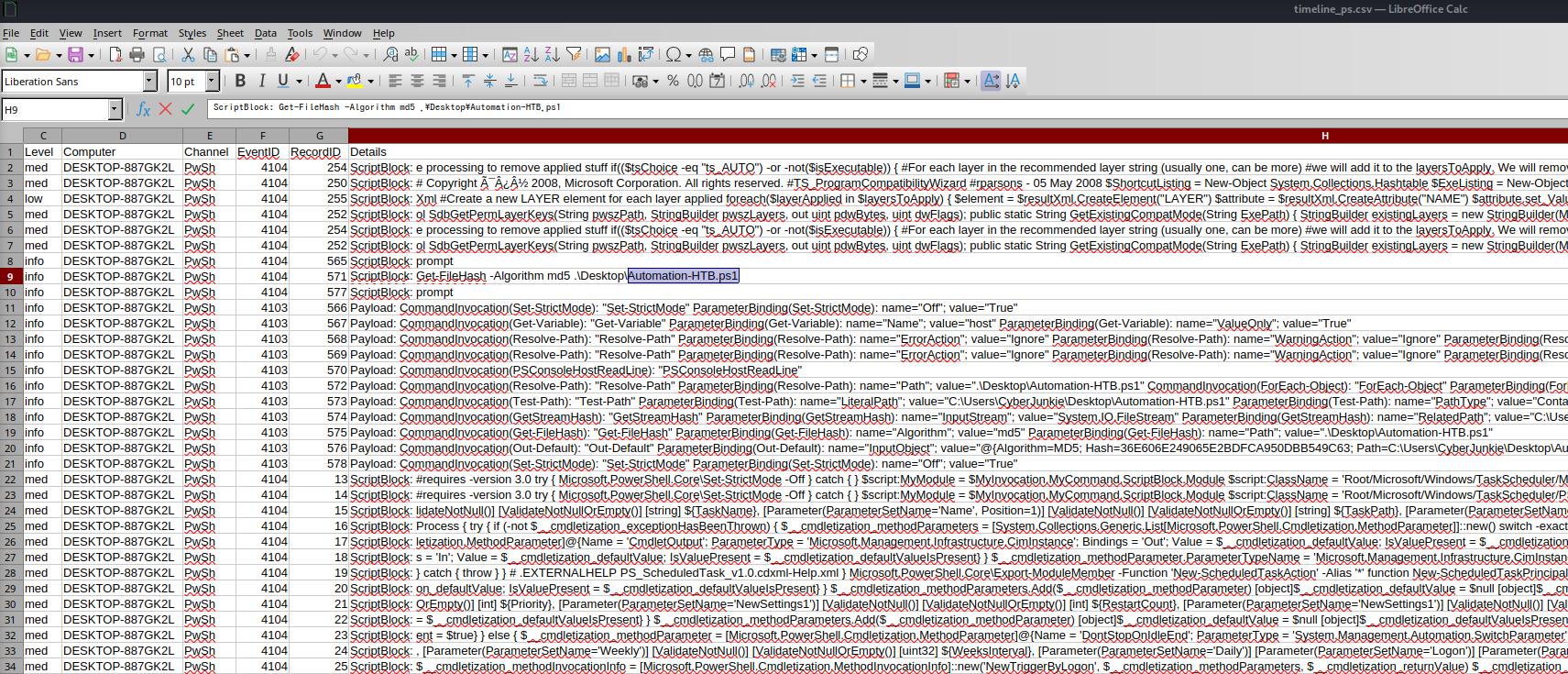

Q11. The user used Powershell to execute commands. What command was executed by the user?

Switch to Powershell-Operational.evtx and filter on Event ID 4104 (ScriptBlock logging), which records the actual command text. Searching for Automation-HTB.ps1 surfaces the relevant block.

Answer

Get-FileHash -Algorithm md5 .\Desktop\Automation-HTB.ps1

Analysis — ScriptBlock logging (4104) is the single most useful PowerShell forensic source because it captures the de-obfuscated command text the engine actually ran — without it, you only see that PowerShell launched, not what it did. Here the user computed the MD5 of his own Automation-HTB.ps1, the same script wired into the scheduled task — likely verifying the payload he staged. (MITRE ATT&CK T1059.001 — PowerShell.)

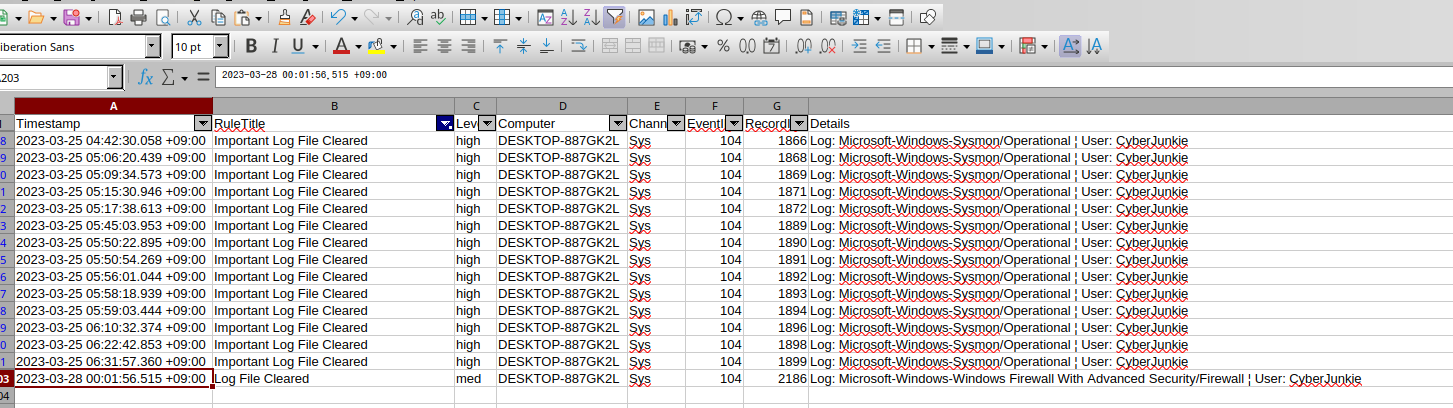

Q12. We suspect the user deleted some event logs. Which Event log file was cleared?

A cleared log writes its own marker. In Windows Firewall-Firewall.evtx look for Event ID 104 (“the log file was cleared”) — the event records which channel was wiped.

Answer

Microsoft-Windows-Windows Firewall With Advanced Security/Firewall

Analysis — EID 104 (log cleared) is a paradox the attacker can’t escape: clearing a log writes a new event announcing the clear, so the act of covering tracks leaves a track. Wiping the Firewall channel specifically is telling — it is the very log that recorded the Metasploit C2 Bypass rule, so this is a targeted attempt to destroy the evidence of the C2 firewall change. (MITRE ATT&CK T1070.001 — Indicator Removal: Clear Windows Event Logs.)

Attack Timeline

Time (UTC)	Stage	Evidence
2023-03-27 14:37:09	Initial Access / Valid Accounts	cyberjunkie interactive logon — Security 4624
2023-03-27 14:42:34	Ingress Tool Transfer	SharpHound-v1.1.0.zip downloaded & flagged — Defender 1116, quarantined 1117
2023-03-27 14:44:43	Impair Defenses	Outbound firewall rule Metasploit C2 Bypass (RemotePort 4444) added — Firewall 2004
2023-03-27 14:50:03	Impair Defenses	Audit policy subcategory “Other Object Access Events” changed — Security 4719
2023-03-27 14:51:21	Persistence / Execution	Scheduled task HTB-AUTOMATION → Automation-HTB.ps1 -A cyberjunkie@hackthebox.eu — Security 4698
2023-03-27 (PS)	Execution	Get-FileHash -Algorithm md5 .\Desktop\Automation-HTB.ps1 — PowerShell 4104
2023-03-27 15:01:56	Defense Evasion	Windows Firewall log cleared — Firewall 104

flowchart TB

    subgraph EVID["Evidence"]
        direction LR
        V1["① Security 4624 logon + 4719 audit change + 4698 task<br/>cyberjunkie / HTB-AUTOMATION"]
        V2["② Firewall 2004 rule add + 104 log cleared<br/>Metasploit C2 Bypass / RemotePort 4444 / Outbound"]
        V3["③ Defender 1116/1117 + PowerShell 4104<br/>SharpHound-v1.1.0.zip quarantined / Get-FileHash"]
    end

    subgraph IOCS["IOCs"]
        direction LR
        O1["Persistence task: HTB-AUTOMATION<br/>C:\Users\CyberJunkie\Desktop\Automation-HTB.ps1 -A cyberjunkie@hackthebox.eu"]
        O2["C2 firewall rule: Metasploit C2 Bypass (Outbound, TCP 4444)"]
        O3["Hacktool: C:\Users\CyberJunkie\Downloads\SharpHound-v1.1.0.zip (quarantined)"]
    end

    subgraph ATTACK["MITRE ATT&CK"]
        direction LR
        T1["T1053.005 Scheduled Task"]
        T2["T1562.004 Disable/Modify Firewall"]
        T3["T1070.001 Clear Windows Event Logs"]
    end

    V1 ==> O1
    V2 ==> O2
    V3 ==> O3
    V1 -.-> T1
    V2 -.-> T2
    V2 -.-> T3

Detection & Hardening (Blue Team)

What would have caught this earlier — and made it harder to hide:

• Alert on Event ID 2004 firewall rule adds, especially outbound Allow rules to high-risk ports (4444, 1337, etc.) or rules created by mmc.exe/PowerShell. A rule named after an attack framework should page someone.
• Alert on Event ID 4719 audit-policy changes — legitimate changes are rare; treat any as potential telemetry tampering and verify the subcategory wasn’t disabled.
• Monitor Event ID 4698 (scheduled-task creation) for tasks pointing at scripts in user-writable paths (Desktop, Downloads, AppData).
• Keep PowerShell ScriptBlock (4104) and Module logging on, with transcription — it is the only reliable way to recover what PowerShell actually executed.
• Forward all logs to a SIEM in real time so that Event ID 104/1102 (log cleared) is alerted on and the content survives even when the local copy is wiped — a cleared local firewall log shouldn’t mean lost evidence.
• Treat any AV hacktool detection (Defender 1116/1117) as a hunt trigger, not a closed ticket — a quarantined SharpHound still reveals AD-recon intent.

Key Takeaways

• LogJammer is a routing exercise: each answer lives in a different channel/Event ID — firewall in Windows Firewall-Firewall.evtx (2004/104), AV in Windows Defender-Operational.evtx (1116/1117), PowerShell content in Powershell-Operational.evtx (4104), logons/audit/tasks in Security.evtx (4624/4719/4698).
• Decode the numeric firewall fields (Direction 2 = Outbound, Action 3 = Allow-if-secure, Protocol 6 = TCP, RemotePort 4444) and normalise timestamps to UTC (JST +09:00) before answering.
• The attacker’s track-covering is self-defeating: clearing the firewall log fired Event ID 104, naming the very channel that held his Metasploit C2 Bypass rule.

References

• HackTheBox Sherlock: LogJammer — https://app.hackthebox.com/sherlocks
• Microsoft — 4624(S): An account was successfully logged on — https://learn.microsoft.com/windows/security/threat-protection/auditing/event-4624
• Microsoft — 4719(S): System audit policy was changed — https://learn.microsoft.com/windows/security/threat-protection/auditing/event-4719
• Microsoft — 4698(S): A scheduled task was created — https://learn.microsoft.com/windows/security/threat-protection/auditing/event-4698
• Microsoft — About PowerShell ScriptBlock logging (4104) — https://learn.microsoft.com/powershell/module/microsoft.powershell.core/about/about_logging_windows
• Eric Zimmerman’s Tools (EvtxECmd / Timeline Explorer) — https://ericzimmerman.github.io/
• MITRE ATT&CK: T1053.005 (Scheduled Task), T1562.004 (Disable/Modify System Firewall), T1070.001 (Clear Windows Event Logs), T1059.001 (PowerShell), T1087 (Account Discovery)
